KEF MUON - Aluminum

Description

Engineering Meets Industrial Design

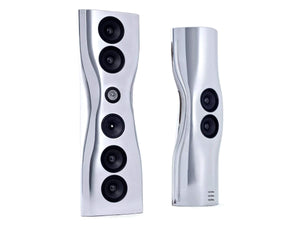

Born from a collaboration with visionary industrial designer Ross Lovegrove, the KEF MUON reimagines the physical presence of a reference floorstanding speaker. The mandate was to wrap KEF's most advanced acoustic engineering within a purposeful organic form without sacrificing rigidity. The result is a 2000 mm tall sculptural silhouette that breaks entirely from traditional wooden enclosures. Limited to just 100 pairs worldwide, this design proves that rigorous acoustic requirements can dictate a fluid shape, where every curve directly supports sound dispersion by eliminating the flat surfaces that cause early reflections.

Super-Formed Aluminium Shell

The external structure of the MUON is fabricated from 6 mm thick aluminium sheets, molded using a super-forming process typically reserved for aerospace manufacturing. This metal shell creates a completely rigid and inert acoustic environment, breaking up the visual mass of the speaker while preventing mechanical resonance. Internally, extensive strengthening braces and a heavy coating of damping compound line the walls, ensuring that the kinetic energy from the eight low-frequency drivers is projected into the room rather than vibrating the cabinet. The absence of sharp edges allows sound waves to radiate without diffraction.

Precision Uni-Q Driver Array

The core of the speaker's spatial imaging relies on the patented Uni-Q® driver array, which places the 25 mm vented aluminium high-frequency dome at the exact acoustic center of the 125 mm midrange cone. This configuration acts as a single point source for the critical vocal and treble bands. Combined with the smooth contours of the aluminium cabinet, this array disperses middle and high frequencies widely and evenly across the listening space. The listener experiences an accurate, three-dimensional soundstage from almost any position in the room, completely removing the restriction of a narrow sweet spot.

ACE Technology and Low-Frequency Extension

To support a frequency response that extends down to 25 Hz at ±3 dB, KEF equips each speaker with six 250 mm low-frequency drivers and one 250 mm low-mid frequency driver. The physical challenge of cabinet volume is solved by Acoustic Compliance Enhancement (ACE) technology. By packing the internal chambers with activated carbon, the adsorption of air molecules during pressure changes effectively doubles the acoustic volume available to the drivers. This material science innovation allows the MUON to generate a maximum sound pressure level of 118 dB with the bass extension of a much larger enclosure.

Handcrafted in Maidstone

Every pair of MUON loudspeakers is assembled by hand at the KEF workshops in Maidstone, UK. Given the complexity of the super-formed aluminium shell and the tight tolerances required by the four-way crossover network (operating at 120 Hz, 300 Hz, and 2.3 kHz), production is strictly controlled. Following assembly, each speaker is rigorously tested inside KEF's highly accurate anechoic chambers. The speaker is delivered with a certificate documenting its unique frequency response curve, signed by the specific craftsman who built it, confirming its compliance with KEF's reference standards.

Frequently Asked Questions (FAQ)

Why choose the KEF MUON?

The MUON is KEF's flagship floorstanding speaker, produced in a strict limited edition of 100 pairs worldwide. They appeal to listeners seeking a sculptural aesthetic by Ross Lovegrove merged with ultra-wide bandwidth acoustic reproduction. Their 6 mm thick super-formed aluminium shell houses eight low-frequency drivers, a Uni-Q® array, and activated-carbon ACE technology. It is the pinnacle engineering statement in the KEF catalog, capable of generating 118 dB of sound pressure while maintaining a completely inert cabinet.

What does the specific super-formed aluminium shape provide?

The curved design directly serves acoustic performance by eliminating the sharp edges that cause sound wave diffraction. Using 6 mm thick aluminium sheets, combined with internal strengthening braces and damping material, makes the cabinet completely rigid. This mass neutralizes the mechanical vibrations generated by the six 250 mm bass drivers. The audio radiates from the speaker without being colored by cabinet resonance.

How does the ACE technology work inside the speaker?

Acoustic Compliance Enhancement (ACE) technology bypasses the physical limitations of cabinet volume by introducing activated carbon into the enclosure. The carbon pores adsorb and release air molecules as the internal pressure changes in response to the bass drivers' movement. This process lowers the internal air resistance, effectively doubling the acoustic volume available to the transducers. This allows the MUON to reach down to 25 Hz with high efficiency.

Where does this model sit compared to the KEF Blade One Meta?

The MUON is the limited-edition flagship that sits above the Blade One Meta in the KEF hierarchy. While the Blade One Meta utilizes Metamaterial Absorption Technology (MAT) and a Single Apparent Source design with four bass drivers, the MUON deploys a much larger four-way configuration. With six 250 mm bass drivers and ACE technology housed in a 115 kg aluminium cabinet, the MUON offers higher dynamic capacity (118 dB) and a frequency response extended to 60 kHz.

What type of amplification is recommended for these speakers?

KEF recommends an amplifier capable of delivering between 100 W and 400 W per channel. With a measured sensitivity of 90 dB (2.83 V / 1 m) and a nominal impedance of 4 Ω, the MUON require stable, high-current amplification to properly control their multiple 250 mm low-frequency drivers. The crossover network separates the signal at 120 Hz, 300 Hz, and 2.3 kHz, demanding a robust power supply to maintain dynamics across the entire 25 Hz to 60 kHz spectrum.

What's in the Box

KEF MUON floorstanding speakers (pair)

Signed frequency response certificate

User manual
