McIntosh C8 - Black glass - Black glass

Description

The McIntosh Compact Format: A Tube Topology in an Open Chassis

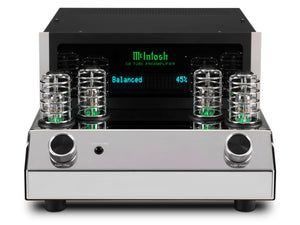

The C8 shares its industrial language with McIntosh's other open-chassis products: the MC275 stereo tube amplifier and the MA252 and MA352 integrated amplifiers. The lower chassis is polished mirror stainless steel, the front panel is black glass with fiber-optic illuminated legends and a silver trim, and the tubes sit on top of the enclosure under a protective cage that lets the glow of the tubes show through during operation. Noticeably narrower than a standard McIntosh preamplifier: 12-9/32 × 7-5/8 × 16-1/4 in. (31.2 × 19.4 × 41.3 cm), 18 lb (8.2 kg), 50 W power consumption. That compact footprint makes the C8 the least imposing preamplifier in the McIntosh range — well suited to a bookshelf rack or to a visual pairing with an MC275 or an MA252/MA352 integrated amplifier to build a coherent tube system.

Four 12AX7a Tubes and Bass/Treble Tone Controls

The C8's line stage is built around four carefully selected 12AX7a vacuum tubes. Measured performance: total harmonic distortion 0.08%, high-level signal-to-noise ratio 95 dB, frequency response +0/-0.5 dB from 20 Hz to 20 kHz (+0/-3 dB from 15 Hz to 100 kHz), maximum output 16 V RMS balanced and 8 V RMS unbalanced. Sensitivity is 900 mV balanced and 450 mV unbalanced, with a line-level voltage gain of 15 dB. Classic bass and treble tone controls are available from the front panel and the remote, with a full bypass of the tone circuit remembered per input so the tone stage can be removed from the signal path when it is not needed. An Auto Off feature puts the preamplifier into standby after 30 minutes without signal or user input; it can be disabled in the menu.

Dedicated MM and MC Phono Stages With Adjustable Loading

The C8 provides two separate dedicated phono inputs: one for moving magnet (MM) cartridges and one for moving coil (MC) cartridges, each with its own topology and gain. Unlike the larger McIntosh preamplifiers (C55, C2800), where two universal phono inputs are software-configurable as MM or MC, the C8 dedicates one input to each type — a simpler approach that keeps both inputs simultaneously live and accessible. Resistance and capacitance loading are adjustable from the menu to match the cartridge specification. Sensitivity is 0.45 mV MC (75 dB gain, 75 dB S/N) and 4.5 mV MM (55 dB gain, 80 dB S/N). The C8 will host two turntables in parallel — an audiophile MC deck and a more common MM deck, for example — without pulling in an external phono stage.

Five Analog Inputs, Three Variable Outputs and Configurable Subwoofer Output

Five analog inputs in total: one balanced XLR pair, two unbalanced RCA pairs, plus the two dedicated phono inputs (MM and MC). Each input can be renamed on screen for day-to-day selection, and Input Level Match ±6 dB per input aligns perceived volume across sources without touching the main volume. Outputs: one balanced XLR variable pair and two unbalanced RCA variable pairs (no fixed outputs). One of the two unbalanced RCA pairs can be configured in the menu as a subwoofer output for a powered subwoofer — a feature the C8 is the only entry-tier McIntosh preamplifier to carry. Input impedance is 44 kΩ balanced and 22 kΩ unbalanced.

High Drive Headphone Amplifier and Home Theater PassThru

The 1/4-inch front-panel headphone output is handled by the McIntosh High Drive amplifier, designed to drive a wide range of audiophile headphones with enough voltage headroom for both easy loads and higher-impedance references. The Home Theater PassThru feature lets the front-channel signal from a home theater processor pass through the C8 at unity gain so the same speaker pair can serve stereo and cinema — useful in a compact chain where the C8 also serves as the cinema entry point for the main speakers. Any input can be assigned to that function in the menu and recalled automatically with the input selection.

Optional DA2 Module: A Path to High-Resolution Digital

The C8 leaves the factory as a purely analog preamplifier, with no digital section. The rear-panel expansion bay is however ready to receive the McIntosh DA2 digital audio module as a dealer-installed upgrade. The DA2 adds seven digital inputs: two coaxial, two optical (24-bit / 192 kHz), one USB (DSD512 and DXD 384 kHz), one proprietary MCT input for a direct DSD stream from a McIntosh MCT series SACD/CD transport, and one HDMI ARC input that receives TV audio with Dolby Digital and DTS multichannel decoded to stereo. The DA2 is powered by a Quad Balanced 8-channel 32-bit DAC. That upgrade path lets the C8 grow with the addition of a streamer or a high-end television without being replaced, while keeping the same tube analog stage.

A Preamplifier Hand-Assembled in Binghamton

McIntosh Laboratory shipped its first amplifier in 1949 from Binghamton, New York, and still builds every product by hand at the same site today. The C8 carries the visual signatures of the brand in a compact format: black glass front panel with fiber-optic illuminated legends, illuminated McIntosh logo, machined aluminum knobs, die-cast aluminum side badges with the classic McIntosh logo, and polished mirror stainless steel chassis. Every unit is tested point by point before leaving the factory and ships with a 3-year limited warranty backed by the authorized McIntosh service network — an entry-tier preamplifier built to the same standard as the top of the line.

Common Questions

Where does the C8 sit in the McIntosh tube preamplifier lineup?

The C8 is the entry point of the McIntosh tube stereo preamplifier family. Above it, the C22 Mk V is the purely analog model in the retro visual language of the C22 lineage, with seven analog inputs and two front-panel-adjustable phono inputs. The C2800 is the most feature-complete tube preamplifier, with a built-in DA2 module, sixteen inputs, a graphic equalizer, the return of the Processor Loop, and network integration. The C8 stands out by the compact open-chassis format it shares with the MC275 stereo tube amplifier and the MA252/MA352 integrated amplifiers, and by the more accessible price point.

Does the C8 have a built-in DAC?

No — the C8 leaves the factory as a purely analog preamplifier. The rear expansion bay can however accept the McIntosh DA2 digital module, which adds seven digital inputs: two coaxial, two optical (24-bit / 192 kHz), one USB (DSD512 and DXD 384 kHz), one proprietary MCT input for a McIntosh MCT series SACD/CD transport, and one HDMI ARC input for TV audio. It is the same DA2 module that ships built in on the C55 and C2800.

Which McIntosh amplifier is intended to pair with the C8?

McIntosh places the MC830 first — a 300 W solid-state monoblock that shares the exact same compact open-chassis format and visual language as the C8. A pair of MC830s with the C8 forms the coherent open-chassis McIntosh system that the brand regularly presents together. To stay in the tube family on the power side, the MC275 stereo tube amp (2 × 75 W) also shares the open-chassis format and extends the C8's tube topology across the whole chain.

How do the C8's phono input adjustments work?

The C8 carries two separate phono inputs: one for moving magnet (MM) cartridges and one for moving coil (MC) cartridges. From the on-screen setup menu, both the resistance loading and the capacitance loading can be adjusted per input to match the cartridge manufacturer's spec sheet. Sensitivity is 4.5 mV MM (55 dB gain) and 0.45 mV MC (75 dB gain). Both inputs are live and accessible in parallel, which lets the C8 host two turntables at once without reconfiguration.

What's in the Box

McIntosh C8 vacuum tube preamplifier

McIntosh remote control

AC power cord

Documentation and owner's manual
