McIntosh MC2.1KW - Black

Description

The Most Powerful Monoblock in the McIntosh Catalog

The MC2.1KW sits at the top of the McIntosh power amplifier lineup — a tri-chassis design engineered to deliver 2,000 W per channel with the purity and control expected of a reference-tier component. McIntosh presents it as the culmination of the brand's 75+ years of experience in sound reproduction. Available on its own or as part of the McIntosh Reference Music System and Reference Home Theater System, the MC2.1KW pairs particularly well with the XRT2.1K reference loudspeaker (or its predecessor XRT2K), but stays versatile: it is built for power-hungry loudspeakers, very large listening rooms, or listeners who simply want the best of McIntosh in a stereo or home theater setup.

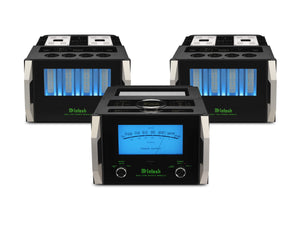

Tri-Chassis Architecture: One Output Module and Two Power Modules

The MC2.1KW is made up of three distinct physical modules: one central Output Module and two Power Modules, each containing a 1,000 W amplifier. The incoming audio signal enters the Output Module from the preamplifier. An in-phase signal is sent to one of the Power Modules and amplified; simultaneously, an out-of-phase signal is sent to the other Power Module and amplified. Both amplified signals return to the Output Module and drive opposite ends of the bi-filar wound McIntosh Autoformer™. The two signals recombine into one — power sums while common-mode noise reduces or fully cancels. The low-distortion amplified signal then leaves the Output Module for the speakers. Weather-tight bayonet IP68-rated interconnect cables link the modules for a durable, reliable connection.

2,000 W Into 2, 4, or 8 Ohms Through Autoformer™, 0.005% Rated THD

Through McIntosh's hand-wound Autoformer™ transformers, the MC2.1KW delivers its full 2,000 W into 2, 4, or 8 ohm speakers — full rated power across all common speaker impedances with no compromise. A conventional amplifier with a single fixed output impedance could give up as much as half of its power capability on a mismatched load; the Autoformer™ eliminates that compromise. Rated total harmonic distortion 0.005%, signal-to-noise 123 dB below rated output (a remarkable figure), 2.1 dB dynamic headroom, damping factor greater than 40 across the audio band (Wideband). Frequency response +0/-0.25 dB from 20 Hz to 20 kHz (+0/-3 dB from 10 Hz to 100 kHz).

New on the MC2.1KW: Dual Sets of Balanced and Unbalanced Inputs

A key upgrade on the MC2.1KW over the original MC2KW: dual sets of balanced XLR and unbalanced RCA inputs. This double connectivity lets you connect two different preamplifiers at the same time and switch between them by source or musical taste. For example, a tube preamplifier and a solid-state preamplifier can both feed the MC2.1KW in parallel. The McIntosh C12000 reference preamplifier — which contains both a tube section and a solid-state section with dedicated outputs for each — fully exploits this configuration. The MC2.1KW also carries the McIntosh Quad Balanced topology — a fully differential circuit from input to output that cancels virtually all common-mode noise and distortion.

Key Upgrade vs the MC2KW: Substantially Larger Filter Capacitors

The MC2.1KW succeeds the legendary MC2KW that made waves at the 2005 CES in Las Vegas. The most notable sonic upgrade lives in the filter capacitors: eight substantially larger capacitors housed in the Power Modules behind the custom Power Bank that is visible through the front-panel glass. Those larger capacitors improve low-frequency performance and meaningfully increase available dynamic headroom for the most demanding musical transients. Other upgrades: redesigned circuits with modern components and shorter signal paths, updated electrical wiring, bayonet IP68 weather-tight interconnect cables between modules, direct-LED front-panel lighting, and — critically — the dual sets of balanced and unbalanced inputs (vs a single set on the MC2KW).

Power Guard®, Sentry Monitor™ and Solid Cinch™ Protection

The MC2.1KW carries the McIntosh proprietary protection circuits. Power Guard® monitors the input signal continuously and dynamically adjusts gain at near-speed-of-light response to prevent hard clipping of the output stage — critical for tweeter protection and for preserving signal quality at high listening levels, and imperceptible to the listener. Sentry Monitor™ is a fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels, then automatically resets once conditions return to normal. The patented gold-plated Solid Cinch™ speaker binding posts sit on separate output platforms — one per impedance (2, 4, and 8 ohms) — and each platform carries three identical sets of binding posts to make bi-amping or tri-amping of multi-way loudspeakers straightforward. Four McIntosh Monogrammed Heatsinks™ are installed on each Power Module (eight total), coupled to high-current output transistors for consistent thermal dissipation from the first note to the last.

Common Questions

Why three separate chassis instead of one?

McIntosh gives two practical reasons. First, physical: each module weighs over 120 lb (54 kg), for a total of about 400 lb (181 kg) if the MC2.1KW were built as a single chassis — impossible for one installer or owner to move. The three-module split makes each easier to handle individually. Second, home electrical: a single chassis at this power level would require a high-voltage outlet (like the ones used for electric ranges), forcing modifications to the home's wiring. The three-module design lets each module use a standard household outlet with no rewiring needed. Functionally: an in-phase signal is sent to one Power Module and an out-of-phase signal to the other, and the two recombine on the bi-filar wound Autoformer™ in the Output Module.

Which speaker binding post platform should I use (2, 4, or 8 ohms)?

The MC2.1KW has three separate output platforms on the Output Module, one per nominal impedance (2, 4, and 8 ohms). Connect the speakers to the platform that matches the nominal impedance rated by the manufacturer. Each platform carries three identical sets of gold-plated Solid Cinch™ binding posts, which allows direct bi-amping or tri-amping of multi-way loudspeakers with no Y-cable adapters. Thanks to the McIntosh Autoformer™ output transformers, the MC2.1KW delivers its full 2,000 W on any of these three taps without compromise.

What's the difference between the MC2.1KW and the MC1.25KW?

The MC1.25KW is a single-chassis monoblock rated at 1,200 W (not 1,250 W), while the MC2.1KW uses a tri-chassis architecture with three distinct modules to deliver 2,000 W. Beyond raw power, the MC2.1KW adds dual sets of XLR and RCA inputs (vs a single set on the MC1.25KW), the unique bi-filar recombination of in-phase and out-of-phase signals on the Autoformer™, and substantially larger filter capacitors that improve dynamic headroom in very large rooms. The MC1.25KW remains a coherent pick for a listener who wants maximum power in a single chassis; the MC2.1KW is for listeners pushing every criterion to the limit.

Which McIntosh preamplifier is recommended with the MC2.1KW?

McIntosh particularly recommends pairing the MC2.1KW with the C12000, the brand's reference preamplifier which contains both a tube section and a solid-state section with dedicated outputs for each. This pairing fully leverages the MC2.1KW's dual sets of XLR and RCA inputs: the C12000's tube outputs feed one input set, its solid-state outputs feed the other, and the listener switches between the two acoustic signatures by source or musical style. Alternately, two separate preamplifiers can be connected (a tube preamp and a solid-state preamp, for instance). The XRT2.1K reference loudspeaker (or its XRT2K predecessor) is the natural acoustic partner for the MC2.1KW in the McIntosh Reference Music System and Reference Home Theater System.

What's in the Box

McIntosh MC2.1KW Output Module

Two McIntosh MC2.1KW Power Modules

Bayonet IP68 weather-tight interconnect cables

AC power cords

Owner's manual
