McIntosh MA12000 - Black glass

Description

The Pinnacle of the McIntosh Integrated Amplifier Line

The MA12000 is the most feature-complete and most powerful product McIntosh has ever placed in a single integrated chassis. The design goal is clear: give the listener the entire McIntosh hi-fi chain — tube preamplification, solid-state power amplification, built-in DA2 digital section, 8-band analog equalizer, reference headphone amplifier, Home Theater PassThru — without forcing separate components. It is the pick for listeners who prefer the simplicity of an integrated to a stack of preamplifier, DAC, power amp, and mono blocks, without compromising performance or flexibility. The MA12000 weighs 108 lb (48.9 kg) and occupies 17.5 × 9-7/16 × 19-3/4 in. (44.5 × 24 × 50.2 cm) — the equivalent of a three-box system concentrated into one enclosure.

Hybrid Drive™ Architecture: Four Tubes + Solid-State Power

McIntosh's Hybrid Drive™ architecture combines two amplification topologies into a single integrated: a vacuum tube preamplifier stage (four 12AX7A tubes, two per channel) that brings the harmonic breathing and texture typical of a tube chain, and a solid-state power stage that brings the reaction speed, output power, and quiet noise floor of transistors. The tubes are visible at the center of the chassis, between the two blue Watt meters, and the 8-band tone control knobs sit below them. Measured performance reflects the care of the signal path: preamplifier total harmonic distortion 0.03%, frequency response +0/-0.5 dB from 20 Hz to 20 kHz (+0/-3 dB from 10 Hz to 100 kHz), high-level signal-to-noise ratio 95 dB, and power amplifier input signal-to-noise ratio 114 dB.

350 W Per Channel via Autoformer® Into 2, 4, or 8 Ohms

The power stage delivers 350 W per channel — the highest output McIntosh has ever placed in an integrated amplifier. McIntosh's proprietary Autoformer® technology guarantees that the full 350 W is available regardless of the speaker's nominal impedance: 2, 4, or 8 ohms, each with its own dedicated gold-plated Solid Cinch® speaker binding post. Three additional technologies protect the whole chain: Power Guard® adjusts the input level in microseconds to prevent audible clipping and speaker damage, Sentry Monitor™ disengages the output stage on short-circuit conditions and re-engages automatically once normal conditions return, and the ThermalTrak output transistors with Monogrammed Heatsinks™ maintain a constant thermal equilibrium with no warm-up lag. The blue Watt meters show peak-responding output power on each channel in real time, with a logarithmic scale.

Seventeen Analog and Digital Inputs Including DA2 With HDMI ARC

The MA12000 carries seventeen inputs in total, which puts it among the most feature-complete integrated amplifiers on the market. Ten analog: two balanced XLR, six unbalanced RCA, and two dedicated phono inputs (one for MM with adjustable loading, one for MC with adjustable loading). Seven digital through the factory-installed DA2 module: two coaxial and two optical (24-bit / 192 kHz), one USB (PCM 32-bit up to 384 kHz, DSD64 through DSD512, DXD 352.8 and 384 kHz), one proprietary MCT input for a direct DSD64 stream from a McIntosh MCT-series SACD transport, and one HDMI ARC input that receives TV audio with Dolby Digital and DTS multichannel decoded to stereo. The DA2 module is physically replaceable in the chassis, protecting the investment as digital formats evolve. The DAC is a Quad Balanced 8-channel 32-bit converter and is Roon Tested certified.

Adjustable MM and MC Phono Stages + 8-Band Analog Equalizer

The two phono inputs are dedicated and independent — one for moving magnet (MM) cartridges and one for moving coil (MC) cartridges — each with adjustable resistance and capacitance loading from the menu. Sensitivity is 4.5 mV MM (77 dB S/N) and 0.45 mV MC (75 dB S/N). On the front panel, the MA12000 carries a hardware 8-band analog equalizer — the same equalizer that sits at the top of the McIntosh preamplifier range (C55). Each of the eight bands offers ±12 dB of adjustment, with a full bypass of the tone circuit remembered per input. This is a pure analog corrector that lets the sonic profile be adjusted to the listening room or a compromised recording, without the phase issues typical of digital filters.

High Drive Headphone Amp With HXD®, Home Theater PassThru and Switchable Outputs

The 1/4-inch headphone output is handled by a discrete High Drive amplifier with the HXD® (Headphone Crossfeed Director) circuit, which restores spatial imaging on headphones by simulating the inter-ear crosstalk present in loudspeaker listening. Home Theater PassThru lets the front-channel signal from a home theater processor pass through the MA12000 at unity gain so the same speaker pair can serve both stereo and cinema, without compromising daily musical listening. On the output side, the MA12000 provides two balanced XLR pairs and two unbalanced RCA pairs, each switchable between fixed or variable mode — useful for driving a powered subwoofer, an external headphone amp, or a second power amplifier in a passive bi-amping configuration.

An Amplifier Hand-Assembled in Binghamton

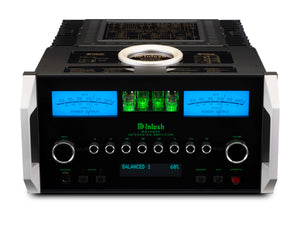

McIntosh Laboratory shipped its first amplifier in 1949 from Binghamton, New York, and still builds every product by hand at the same site today. The MA12000 carries the visual signatures of the brand: black glass front panel with fiber-optic illuminated legends, machined aluminum rotary knobs, and the two signature blue Watt output meters. The top of the chassis is highlighted by a new glass-topped enclosure that houses the Autoformers and the power transformer, circled by a decorative trim ring and capped by a glass name plate — five printed glass panels showing the key specifications and a block diagram of the unit confirm its reference status.

Common Questions

Where does the MA12000 sit in the McIntosh integrated amplifier lineup?

The MA12000 is the absolute top of the McIntosh integrated amplifier family. On the Hybrid Drive side (tube + solid-state), it succeeds the MA352 (200/320 W) and the MA252 (100 W, compact open chassis). On the pure solid-state side, the top is the MA9500 (300 W with Autoformer, 17 inputs, DA2, 8-band EQ) — same extensive feature set as the MA12000 but without the tube preamplification and the extra 50 W of output. Below, the MA8950 (200 W solid-state, 15 inputs) and the MA5300 (compact solid-state with DAC + phono). The catalog also includes the MSA5500 (streaming integrated with Roon Ready, AirPlay, Cast, TIDAL/Spotify/Qobuz Connect) and the MAC7200 (integrated with built-in AM/FM tuner). The MA12000 is the only one to combine tube preamplification, 350 W Autoformer power, and 17 inputs with the DA2 in a single enclosure.

Which speaker binding posts should I connect my speakers to?

Connect each speaker cable to the Autoformer® binding post that matches the nominal impedance stated by the speaker manufacturer (2, 4, or 8 ohms). This approach guarantees the MA12000 delivers the full 350 W per channel to the speaker regardless of the nominal impedance, with no output-stage overheat and no loss of dynamics. The Solid Cinch® binding posts accept bare wire, banana plugs, or spade lugs with a secure hand-tightened grip, and are gold-plated for long-term oxidation resistance.

Can the MA12000 be integrated into a home theater system?

Yes. The Home Theater PassThru feature lets one of the MA12000's inputs be configured to pass the front left and right channel signals from a home theater processor (a McIntosh MX180, or any AV processor with preamp-level outputs) at unity gain, with no volume or tone shaping. The same speaker pair thus serves both stereo music listening (with the 350 W Hybrid Drive™ signature) and cinema listening (with the AV processor's fidelity), without re-cabling.

Which McIntosh source components are recommended with the MA12000?

McIntosh places the MCD12000 SACD/CD player (the reference disc source of the brand) first, followed by the MT10 Precision Turntable, the DS200 streaming DAC (Roon Ready with all major streaming platforms), and the MR89 AM/FM tuner — a complete source lineup. On the speaker side, the brand suggests the ML1 Mk II or the XRT1.1K, though the 350 W delivered across all impedances leaves the MA12000 comfortable with a wide range of audiophile speakers. The MEN220 room correction system can also complement the chain through a preamplifier's Processor Loop when needed.

What's in the Box

McIntosh MA12000 integrated amplifier

McIntosh HR085 remote control

AC power cord

Documentation and owner's manual
